R38減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑80，負載1.5噸，一分鐘走40米

40米÷（0.08輪子直徑×3.14）=159.2轉每分鐘

1.5噸換算成N=15000N

15000×0.04輪子半徑×0.06摩擦系數=36N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍36×2=72N.m

電機轉數1400÷輸出轉數159.2=8.79比

72N.m輸出扭矩÷8.79比=8.19N.m電機扭矩

8.19N.m電機扭矩?fù)Q算成功率1.3KW以上

對應的R38減速機選型參數：

型號：R38-B1.5KW

減速比：9.47

輸出轉數：151轉每分鐘

輸出扭矩：95N.m

安全系數：1.75

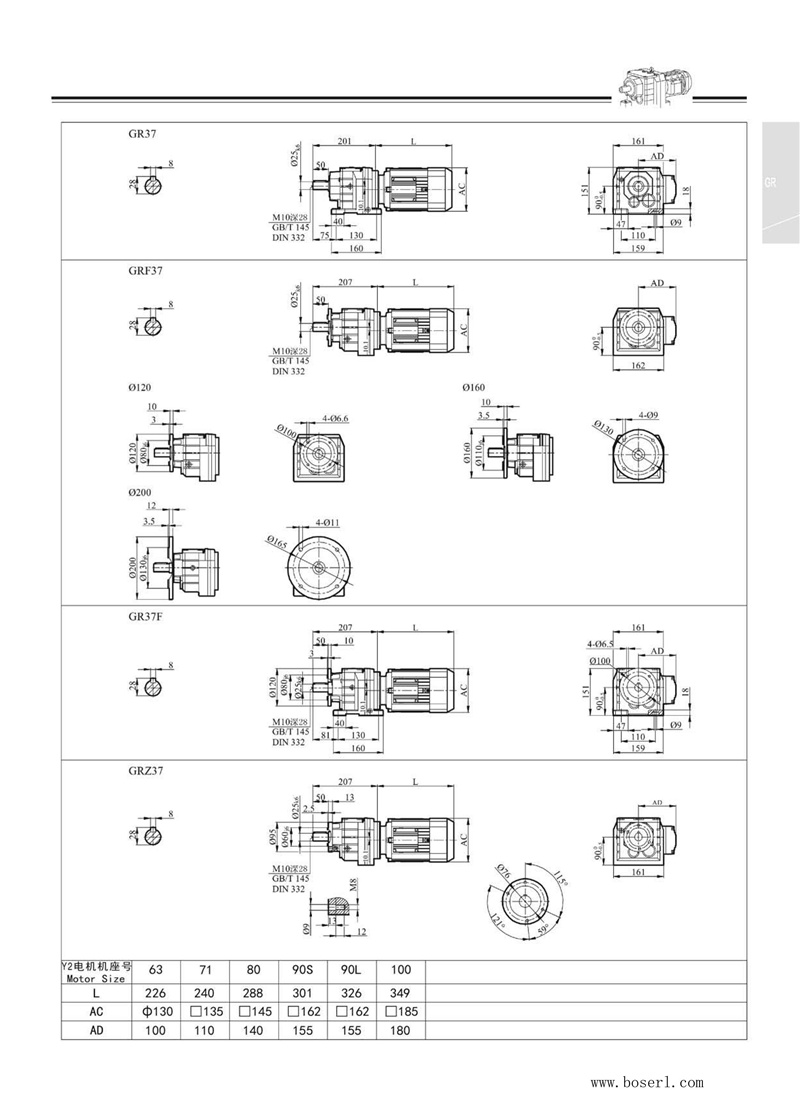

R38減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

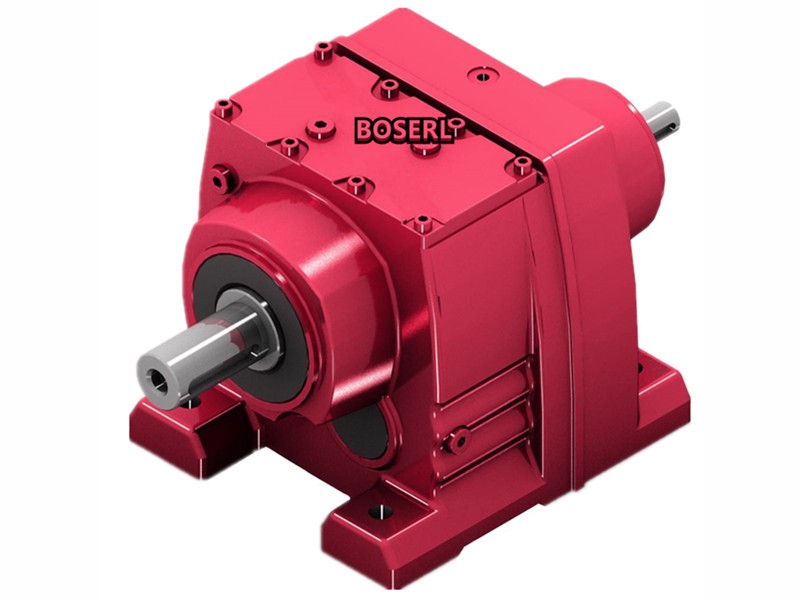

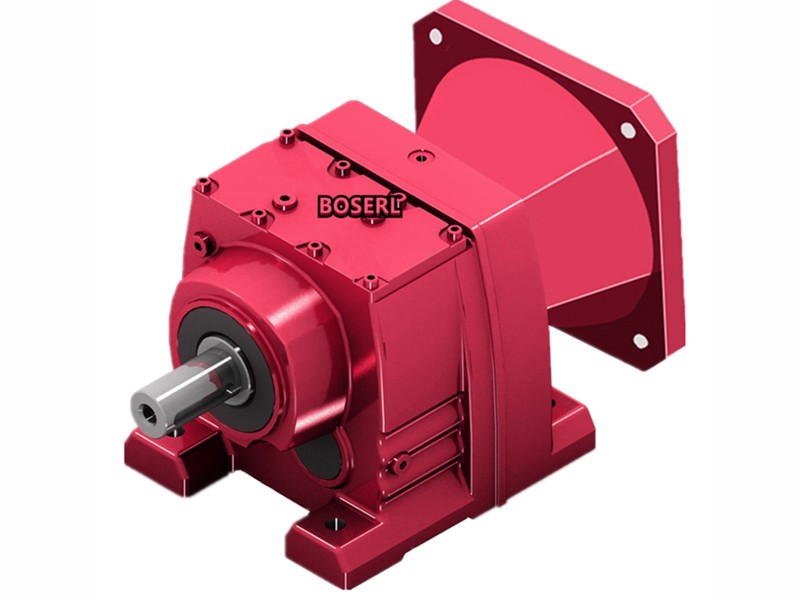

R38臥式硬齒面斜齒輪減速機型號：

R37FDM100L4R37FDM100LC4R37FDM100LS4R37FDM100M4R37FDM63L4R37FDM63M4R37FDM63MS4R37FDM63S4R37FDM71D4R37FDM71M4R37FDM71MS4R37FDM71S4R37FDM80K4R37FDM80M4R37FDM80MK4R37FDM80N4R37FDM80S4R37FDM90L4R37FDM90M4R37FDM90S4R37FDR100L4R37FDR100LC4R37FDR100LS4R37FDR100M4R37FDR63L4R37FDR63M4R37FDR63MS4R37FDR63S4R37FDR71D4R37FDR71M4R37FDR71MS4R37FDR71S4R37FDR80K4R37FDR80M4R37FDR80MK4R37FDR80N4R37FDR80S4R37FDR90L4R37FDR90M4R37FDR90S4R37FDRE100L4R37FDRE100LC4R37FDRE100LS4R37FDRE100M4R37FDRE63L4R37FDRE63M4R37FDRE63MS4R37FDRE63S4R37FDRE71D4R37FDRE71M4R37FDRE71MS4R37FDRE71S4R37FDRE80K4R37FDRE80M4R37FDRE80MK4R37FDRE80N4R37FDRE80S4R37FDRE90L4R37FDRE90M4R37FDRE90S4R37FDRN100L4R37FDRN100LC4R37FDRN100LS4R37FDRN100M4R37FDRN63L4R37FDRN63M4R37FDRN63MS4R37FDRN63S4R37FDRN71D4R37FDRN71M4R37FDRN71MS4R37FDRN71S4R37FDRN80K4R37FDRN80M4R37FDRN80MK4R37FDRN80N4R37FDRN80S4R37FDRN90L4R37FDRN90M4R37FDRN90S4R37FDRS100L4R37FDRS100LC4R37FDRS100LS4R37FDRS100M4R37FDRS63L4R37FDRS63M4R37FDRS63MS4R37FDRS63S4R37FDRS71D4R37FDRS71M4R37FDRS71MS4R37FDRS71S4R37FDRS80K4R37FDRS80M4R37FDRS80MK4R37FDRS80N4R37FDRS80S4R37FDRS90L4R37FDRS90M4R37FDRS90S4R37FDT100L4R37FDT100LC4R37FDT100LS4R37FDT100M4R37FDT63L4R37FDT63M4R37FDT63MS4R37FDT63S4R37FDT71D4R37FDT71M4R37FDT71MS4R37FDT71S4R37FDT80K4R37FDT80M4R37FDT80MK4R37FDT80N4R37FDT80S4R37FDT90L4R37FDT90M4R37FDT90S4R37FDV100L4R37FDV100LC4R37FDV100LS4R37FDV100M4R37FDV63L4R37FDV63M4R37FDV63MS4R37FDV63S4R37FDV71D4R37FDV71M4R37FDV71MS4R37FDV71S4R37FDV80K4R37FDV80M4R37FDV80MK4R37FDV80N4R37FDV80S4R37FDV90L4R37FDV90M4R37FDV90S4R37FDVE100L4R37FDVE100LC4R37FDVE100LS4R37FDVE100M4R37FDVE63L4R37FDVE63M4R37FDVE63MS4R37FDVE63S4R37FDVE71D4R37FDVE71M4R37FDVE71MS4R37FDVE71S4R37FDVE80K4R37FDVE80M4R37FDVE80MK4R37FDVE80N4R37FDVE80S4R37FDVE90L4R37FDVE90M4R37FDVE90S4R37F-Y0.12KWR37F-Y0.18KWR37F-Y0.25KWR37F-Y0.37KWR37F-Y0.55KWR37F-Y0.75KWR37F-Y1.1KWR37F-Y1.5KWR37F-Y100M4R37F-Y2.2KWR37F-Y3KWR37F-Y63M4R37F-Y71M4R37F-Y80M4R37F-Y90M4R37F-YEJ0.12KWR37F-YEJ0.18KWR37F-YEJ0.25KWR37F-YEJ0.37KWR37F-YEJ0.55KWR37F-YEJ0.75KWR37F-YEJ1.1KWR37F-YEJ1.5KWR37F-YEJ100M4R37F-YEJ2.2KWR37F-YEJ3KWR37F-YEJ63M4R37F-YEJ71M4R37F-YEJ80M4R37F-YEJ90M4R37F-YVP0.12KWR37F-YVP0.18KWR37F-YVP0.25KWR37F-YVP0.37KWR37F-YVP0.55KWR37F-YVP0.75KWR37F-YVP1.1KWR37F-YVP1.5KWR37F-YVP100M4R37F-YVP2.2KWR37F-YVP3KWR37F-YVP63M4R37F-YVP71M4R37F-YVP80M4R37F-YVP90M4R37F-YVPEJ0.12KWR37F-YVPEJ0.18KWR37F-YVPEJ0.25KWR37F-YVPEJ0.37KWR37F-YVPEJ0.55KWR37F-YVPEJ0.75KWR37F-YVPEJ1.1KWR37F-YVPEJ1.5KWR37F-YVPEJ100M4R37F-YVPEJ2.2KWR37F-YVPEJ3KWR37F-YVPEJ63M4R37F-YVPEJ71M4R37F-YVPEJ80M4R37F-YVPEJ90M4。

R37系列減速機參數大全：同軸斜齒輪減速電機

R37F減速機配0.12KW電機參數

R37F減速機配0.18KW電機參數

R37F減速機配0.25KW電機參數

R37F減速機配0.37KW電機參數

R37F減速機配0.55KW電機參數

R37F減速機配0.75KW電機參數

R37F減速機配1.1KW電機參數

R37F減速機配1.5KW電機參數

R37F減速機配2.2KW電機參數

R37F減速機配3KW電機參數

R38減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R28減速機
