R28減速機詳細信息

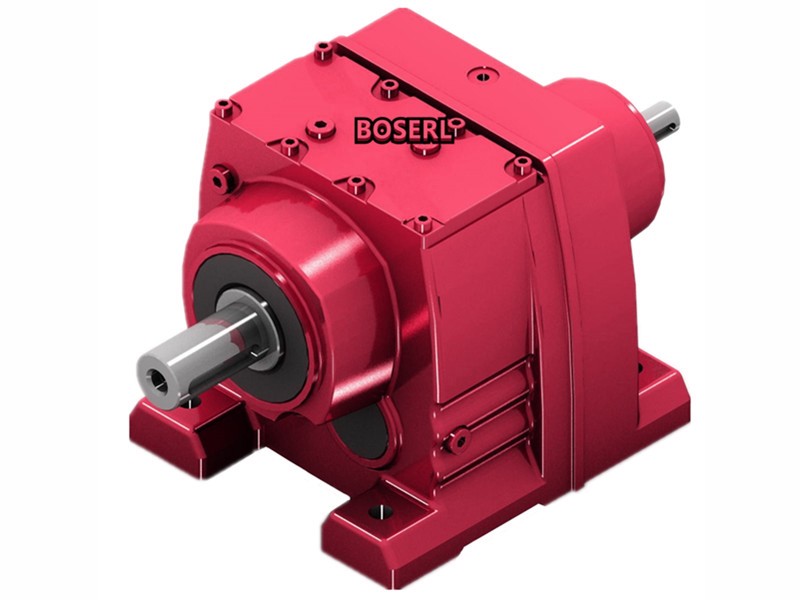

R28減速機
R28減速機傳動比計算：齒輪減速馬達
輸送帶參數：輪子直徑60，負載1噸，一分鐘走45米
45米÷（0.06輪子直徑×3.14）=223.3轉每分鐘
1噸換算成N=10000N
10000×0.03輪子半徑×0.06摩擦系數=18N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍18×2=36N.m
電機轉數1400÷輸出轉數223.3=6.2比
36N.m輸出扭矩÷6.2比=5.8N.m電機扭矩
5.8N.m電機扭矩換算成功率1.1KW以上
對應的R28減速機選型參數：
型號：R28-B1.1KW
減速比：6.59
輸出轉數：215轉每分鐘
輸出扭矩：49N.m
安全系數：2.20

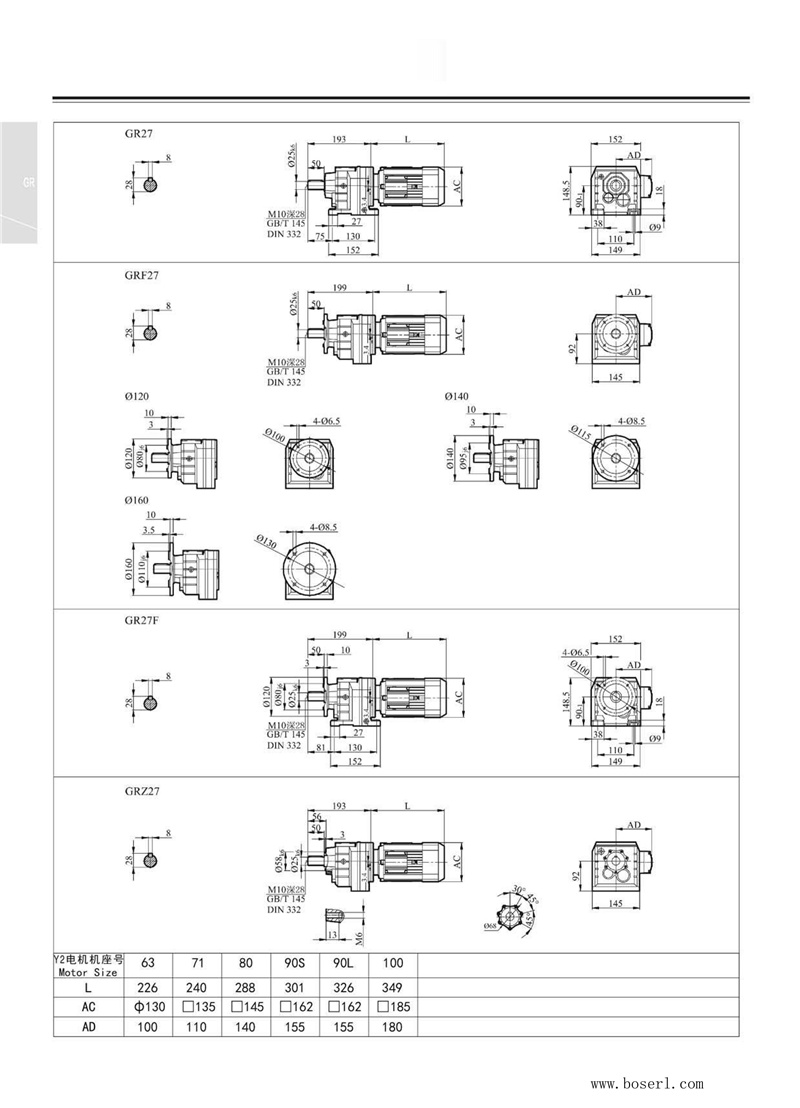

R28減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R28臥式硬齒面斜齒輪減速機型號：R27FDM100L4R27FDM100LC4R27FDM100LS4R27FDM100M4R27FDM63L4R27FDM63M4R27FDM63MS4R27FDM63S4R27FDM71D4R27FDM71M4R27FDM71MS4R27FDM71S4R27FDM80K4R27FDM80M4R27FDM80MK4R27FDM80N4R27FDM80S4R27FDM90L4R27FDM90M4R27FDM90S4R27FDR100L4R27FDR100LC4R27FDR100LS4R27FDR100M4R27FDR63L4R27FDR63M4R27FDR63MS4R27FDR63S4R27FDR71D4R27FDR71M4R27FDR71MS4R27FDR71S4R27FDR80K4R27FDR80M4R27FDR80MK4R27FDR80N4R27FDR80S4R27FDR90L4R27FDR90M4R27FDR90S4R27FDRE100L4R27FDRE100LC4R27FDRE100LS4R27FDRE100M4R27FDRE63L4R27FDRE63M4R27FDRE63MS4R27FDRE63S4R27FDRE71D4R27FDRE71M4R27FDRE71MS4R27FDRE71S4R27FDRE80K4R27FDRE80M4R27FDRE80MK4R27FDRE80N4R27FDRE80S4R27FDRE90L4R27FDRE90M4R27FDRE90S4R27FDRN100L4R27FDRN100LC4R27FDRN100LS4R27FDRN100M4R27FDRN63L4R27FDRN63M4R27FDRN63MS4R27FDRN63S4R27FDRN71D4R27FDRN71M4R27FDRN71MS4R27FDRN71S4R27FDRN80K4R27FDRN80M4R27FDRN80MK4R27FDRN80N4R27FDRN80S4R27FDRN90L4R27FDRN90M4R27FDRN90S4R27FDRS100L4R27FDRS100LC4R27FDRS100LS4R27FDRS100M4R27FDRS63L4R27FDRS63M4R27FDRS63MS4R27FDRS63S4R27FDRS71D4R27FDRS71M4R27FDRS71MS4R27FDRS71S4R27FDRS80K4R27FDRS80M4R27FDRS80MK4R27FDRS80N4R27FDRS80S4R27FDRS90L4R27FDRS90M4R27FDRS90S4R27FDT100L4R27FDT100LC4R27FDT100LS4R27FDT100M4R27FDT63L4R27FDT63M4R27FDT63MS4R27FDT63S4R27FDT71D4R27FDT71M4R27FDT71MS4R27FDT71S4R27FDT80K4R27FDT80M4R27FDT80MK4R27FDT80N4R27FDT80S4R27FDT90L4R27FDT90M4R27FDT90S4R27FDV100L4R27FDV100LC4R27FDV100LS4R27FDV100M4R27FDV63L4R27FDV63M4R27FDV63MS4R27FDV63S4R27FDV71D4R27FDV71M4R27FDV71MS4R27FDV71S4R27FDV80K4R27FDV80M4R27FDV80MK4R27FDV80N4R27FDV80S4R27FDV90L4R27FDV90M4R27FDV90S4R27FDVE100L4R27FDVE100LC4R27FDVE100LS4R27FDVE100M4R27FDVE63L4R27FDVE63M4R27FDVE63MS4R27FDVE63S4R27FDVE71D4R27FDVE71M4R27FDVE71MS4R27FDVE71S4R27FDVE80K4R27FDVE80M4R27FDVE80MK4R27FDVE80N4R27FDVE80S4R27FDVE90L4R27FDVE90M4R27FDVE90S4R27F-Y0.12KWR27F-Y0.18KWR27F-Y0.25KWR27F-Y0.37KWR27F-Y0.55KWR27F-Y0.75KWR27F-Y1.1KWR27F-Y1.5KWR27F-Y100M4R27F-Y2.2KWR27F-Y3KWR27F-Y63M4R27F-Y71M4R27F-Y80M4R27F-Y90M4R27F-YEJ0.12KWR27F-YEJ0.18KWR27F-YEJ0.25KWR27F-YEJ0.37KWR27F-YEJ0.55KWR27F-YEJ0.75KWR27F-YEJ1.1KWR27F-YEJ1.5KWR27F-YEJ100M4R27F-YEJ2.2KWR27F-YEJ3KWR27F-YEJ63M4R27F-YEJ71M4R27F-YEJ80M4R27F-YEJ90M4R27F-YVP0.12KWR27F-YVP0.18KWR27F-YVP0.25KWR27F-YVP0.37KWR27F-YVP0.55KWR27F-YVP0.75KWR27F-YVP1.1KWR27F-YVP1.5KWR27F-YVP100M4R27F-YVP2.2KWR27F-YVP3KWR27F-YVP63M4R27F-YVP71M4R27F-YVP80M4R27F-YVP90M4R27F-YVPEJ0.12KWR27F-YVPEJ0.18KWR27F-YVPEJ0.25KWR27F-YVPEJ0.37KWR27F-YVPEJ0.55KWR27F-YVPEJ0.75KWR27F-YVPEJ1.1KWR27F-YVPEJ1.5KWR27F-YVPEJ100M4R27F-YVPEJ2.2KWR27F-YVPEJ3KWR27F-YVPEJ63M4R27F-YVPEJ71M4R27F-YVPEJ80M4R27F-YVPEJ90M4。
R27系列減速機參數大全：同軸斜齒輪減速電機
R27F減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y0.12KW | 135.09 | 0.12KW | 11kg | 4310N |
| R27F-Y0.12KW | 123.91 | 0.12KW | 11kg | 4340N |
| R27F-Y0.12KW | 105.49 | 0.12KW | 11kg | 4390N |
| R27F-Y0.12KW | 90.96 | 0.12KW | 11kg | 4420N |
| R27F-Y0.12KW | 84.78 | 0.12KW | 11kg | 4440N |
| R27F-Y0.12KW | 74.11 | 0.12KW | 11kg | 4460N |
| R27F-Y0.12KW | 69.47 | 0.12KW | 11kg | 4460N |
| R27F-Y0.12KW | 61.30 | 0.12KW | 11kg | 4400N |
| R27F-Y0.12KW | 55.87 | 0.12KW | 11kg | 4280N |
| R27F-Y0.12KW | 48.17 | 0.12KW | 11kg | 4090N |
| R27F-Y0.12KW | 44.90 | 0.12KW | 11kg | 4000N |
R27F減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y0.18KW | 123.91 | 0.18KW | 11.5kg | 4070N |
| R27F-Y0.18KW | 105.49 | 0.18KW | 11.5kg | 4200N |
| R27F-Y0.18KW | 90.96 | 0.18KW | 11.5kg | 4280N |
| R27F-Y0.18KW | 84.78 | 0.18KW | 11.5kg | 4320N |
| R27F-Y0.18KW | 74.11 | 0.18KW | 11.5kg | 4360N |
| R27F-Y0.18KW | 69.47 | 0.18KW | 11.5kg | 4380N |
| R27F-Y0.18KW | 61.30 | 0.18KW | 11.5kg | 4320N |
| R27F-Y0.18KW | 55.87 | 0.18KW | 11.5kg | 4210N |
| R27F-Y0.18KW | 48.17 | 0.18KW | 11.5kg | 4040N |
| R27F-Y0.18KW | 44.90 | 0.18KW | 11.5kg | 3960N |
| R27F-Y0.18KW | 39.25 | 0.18KW | 11.5kg | 3810N |
| R27F-Y0.18KW | 36.79 | 0.18KW | 11.5kg | 3740N |
| R27F-Y0.18KW | 32.47 | 0.18KW | 11.5kg | 3610N |
| R27F-Y0.18KW | 28.78 | 0.18KW | 11.5kg | 3480N |
| R27F-Y0.18KW | 24.47 | 0.18KW | 11.5kg | 3310N |
| R27F-Y0.18KW | 28.37 | 0.18KW | 11.5kg | 3460N |
| R27F-Y0.18KW | 26.09 | 0.18KW | 11.5kg | 3380N |
| R27F-Y0.18KW | 22.32 | 0.18KW | 11.5kg | 3220N |
| R27F-Y0.18KW | 19.35 | 0.18KW | 11.5kg | 3090N |
| R27F-Y0.18KW | 18.08 | 0.18KW | 11.5kg | 3020N |
| R27F-Y0.18KW | 15.63 | 0.18KW | 11.5kg | 2890N |
| R27F-Y0.18KW | 13.28 | 0.18KW | 11.5kg | 2750N |
R27F減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y0.25KW | 84.78 | 0.25KW | 15.5kg | 4100N |
| R27F-Y0.25KW | 74.11 | 0.25KW | 15.5kg | 4210N |
| R27F-Y0.25KW | 69.47 | 0.25KW | 15.5kg | 4240N |
| R27F-Y0.25KW | 61.30 | 0.25KW | 15.5kg | 4180N |
| R27F-Y0.25KW | 55.87 | 0.25KW | 15.5kg | 4090N |
| R27F-Y0.25KW | 48.17 | 0.25KW | 15.5kg | 3940N |
| R27F-Y0.25KW | 44.90 | 0.25KW | 15.5kg | 3870N |
| R27F-Y0.25KW | 39.25 | 0.25KW | 15.5kg | 3730N |
| R27F-Y0.25KW | 36.79 | 0.25KW | 15.5kg | 3660N |
| R27F-Y0.25KW | 32.47 | 0.25KW | 15.5kg | 3540N |
| R27F-Y0.25KW | 28.78 | 0.25KW | 15.5kg | 3420N |
| R27F-Y0.25KW | 24.47 | 0.25KW | 15.5kg | 3270N |
| R27F-Y0.25KW | 28.37 | 0.25KW | 15.5kg | 3410N |
| R27F-Y0.25KW | 26.09 | 0.25KW | 15.5kg | 3330N |
| R27F-Y0.25KW | 22.32 | 0.25KW | 15.5kg | 3180N |
| R27F-Y0.25KW | 19.35 | 0.25KW | 15.5kg | 3050N |
| R27F-Y0.25KW | 18.08 | 0.25KW | 15.5kg | 2990N |
| R27F-Y0.25KW | 15.63 | 0.25KW | 15.5kg | 2860N |
| R27F-Y0.25KW | 13.28 | 0.25KW | 15.5kg | 2730N |
| R27F-Y0.25KW | 11.86 | 0.25KW | 15.5kg | 2630N |
| R27F-Y0.25KW | 10.13 | 0.25KW | 15.5kg | 2510N |
| R27F-Y0.25KW | 9.41 | 0.25KW | 15.5kg | 2440N |
| R27F-Y0.25KW | 8.16 | 0.25KW | 15.5kg | 2330N |
| R27F-Y0.25KW | 7.63 | 0.25KW | 15.5kg | 2280N |
| R27F-Y0.25KW | 6.59 | 0.25KW | 15.5kg | 2180N |
| R27F-Y0.25KW | 5.60 | 0.25KW | 15.5kg | 2080N |
| R27F-Y0.25KW | 5.00 | 0.25KW | 15.5kg | 2000N |
| R27F-Y0.25KW | 4.27 | 0.25KW | 15.5kg | 1900N |
| R27F-Y0.25KW | 4.00 | 0.25KW | 15.5kg | 1870N |
| R27F-Y0.25KW | 3.37 | 0.25KW | 15.5kg | 1770N |
R27F減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y0.37KW | 61.30 | 0.37KW | 16kg | 3870N |
| R27F-Y0.37KW | 55.87 | 0.37KW | 16kg | 3800N |
| R27F-Y0.37KW | 48.17 | 0.37KW | 16kg | 3680N |
| R27F-Y0.37KW | 44.90 | 0.37KW | 16kg | 3620N |
| R27F-Y0.37KW | 39.25 | 0.37KW | 16kg | 3510N |
| R27F-Y0.37KW | 36.79 | 0.37KW | 16kg | 3460N |
| R27F-Y0.37KW | 32.47 | 0.37KW | 16kg | 3350N |
| R27F-Y0.37KW | 28.78 | 0.37KW | 16kg | 3250N |
| R27F-Y0.37KW | 24.47 | 0.37KW | 16kg | 3110N |
| R27F-Y0.37KW | 28.37 | 0.37KW | 16kg | 3240N |
| R27F-Y0.37KW | 26.09 | 0.37KW | 16kg | 3170N |
| R27F-Y0.37KW | 22.32 | 0.37KW | 16kg | 3040N |
| R27F-Y0.37KW | 19.35 | 0.37KW | 16kg | 2920N |
| R27F-Y0.37KW | 18.08 | 0.37KW | 16kg | 2860N |
| R27F-Y0.37KW | 15.63 | 0.37KW | 16kg | 2750N |
| R27F-Y0.37KW | 13.28 | 0.37KW | 16kg | 2620N |
R27F減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y0.55KW | 39.25 | 0.55KW | 20.5kg | 3270N |
| R27F-Y0.55KW | 36.79 | 0.55KW | 20.5kg | 3230N |
| R27F-Y0.55KW | 32.47 | 0.55KW | 20.5kg | 3150N |
| R27F-Y0.55KW | 28.78 | 0.55KW | 20.5kg | 3070N |
| R27F-Y0.55KW | 24.47 | 0.55KW | 20.5kg | 2960N |
| R27F-Y0.55KW | 22.32 | 0.55KW | 20.5kg | 2900N |
| R27F-Y0.55KW | 19.35 | 0.55KW | 20.5kg | 2800N |
| R27F-Y0.55KW | 18.08 | 0.55KW | 20.5kg | 2750N |
| R27F-Y0.55KW | 15.63 | 0.55KW | 20.5kg | 2650N |
| R27F-Y0.55KW | 13.28 | 0.55KW | 20.5kg | 2540N |
| R27F-Y0.55KW | 11.86 | 0.55KW | 20.5kg | 2460N |
| R27F-Y0.55KW | 10.13 | 0.55KW | 20.5kg | 2360N |
| R27F-Y0.55KW | 9.41 | 0.55KW | 20.5kg | 2280N |
| R27F-Y0.55KW | 8.16 | 0.55KW | 20.5kg | 2190N |
| R27F-Y0.55KW | 7.63 | 0.55KW | 20.5kg | 2150N |
| R27F-Y0.55KW | 6.59 | 0.55KW | 20.5kg | 2070N |
| R27F-Y0.55KW | 5.60 | 0.55KW | 20.5kg | 1970N |
| R27F-Y0.55KW | 5.00 | 0.55KW | 20.5kg | 1910N |
| R27F-Y0.55KW | 4.27 | 0.55KW | 20.5kg | 1820N |
| R27F-Y0.55KW | 4.00 | 0.55KW | 20.5kg | 1780N |
| R27F-Y0.55KW | 3.37 | 0.55KW | 20.5kg | 1690N |
R27F減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y0.75KW | 28.78 | 0.75KW | 21.5kg | 2860N |
| R27F-Y0.75KW | 24.47 | 0.75KW | 21.5kg | 2780N |
| R27F-Y0.75KW | 22.32 | 0.75KW | 21.5kg | 2730N |
| R27F-Y0.75KW | 19.35 | 0.75KW | 21.5kg | 2650N |
| R27F-Y0.75KW | 18.08 | 0.75KW | 21.5kg | 2610N |
| R27F-Y0.75KW | 15.63 | 0.75KW | 21.5kg | 2520N |
| R27F-Y0.75KW | 13.28 | 0.75KW | 21.5kg | 2430N |
| R27F-Y0.75KW | 11.86 | 0.75KW | 21.5kg | 2360N |
| R27F-Y0.75KW | 10.13 | 0.75KW | 21.5kg | 2270N |
| R27F-Y0.75KW | 9.41 | 0.75KW | 21.5kg | 2190N |
| R27F-Y0.75KW | 8.16 | 0.75KW | 21.5kg | 2110N |
| R27F-Y0.75KW | 7.63 | 0.75KW | 21.5kg | 2070N |
| R27F-Y0.75KW | 6.59 | 0.75KW | 21.5kg | 1990N |
| R27F-Y0.75KW | 5.60 | 0.75KW | 21.5kg | 1900N |
| R27F-Y0.75KW | 5.00 | 0.75KW | 21.5kg | 1850N |
R27F減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y1.1KW | 19.35 | 1.1KW | 25.5kg | 2430N |
| R27F-Y1.1KW | 18.08 | 1.1KW | 25.5kg | 2410N |
| R27F-Y1.1KW | 15.63 | 1.1KW | 25.5kg | 2350N |
| R27F-Y1.1KW | 13.28 | 1.1KW | 25.5kg | 2280N |
| R27F-Y1.1KW | 11.86 | 1.1KW | 25.5kg | 2230N |
| R27F-Y1.1KW | 10.13 | 1.1KW | 25.5kg | 2160N |
| R27F-Y1.1KW | 9.41 | 1.1KW | 25.5kg | 2070N |
| R27F-Y1.1KW | 8.16 | 1.1KW | 25.5kg | 2000N |
| R27F-Y1.1KW | 7.63 | 1.1KW | 25.5kg | 1980N |
| R27F-Y1.1KW | 6.59 | 1.1KW | 25.5kg | 1910N |
| R27F-Y1.1KW | 5.60 | 1.1KW | 25.5kg | 1840N |
| R27F-Y1.1KW | 5.00 | 1.1KW | 25.5kg | 1780N |
| R27F-Y1.1KW | 4.27 | 1.1KW | 25.5kg | 1710N |
| R27F-Y1.1KW | 4.00 | 1.1KW | 25.5kg | 1680N |
| R27F-Y1.1KW | 3.37 | 1.1KW | 25.5kg | 1610N |
R27F減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y1.5KW | 15.63 | 1.5KW | 28.5kg | 1740N |
| R27F-Y1.5KW | 13.28 | 1.5KW | 28.5kg | 2050N |
| R27F-Y1.5KW | 11.86 | 1.5KW | 28.5kg | 2070N |
| R27F-Y1.5KW | 10.13 | 1.5KW | 28.5kg | 2020N |
| R27F-Y1.5KW | 8.16 | 1.5KW | 28.5kg | 1880N |
| R27F-Y1.5KW | 7.63 | 1.5KW | 28.5kg | 1860N |
| R27F-Y1.5KW | 6.59 | 1.5KW | 28.5kg | 1810N |
| R27F-Y1.5KW | 5.60 | 1.5KW | 28.5kg | 1750N |
| R27F-Y1.5KW | 5.00 | 1.5KW | 28.5kg | 1700N |
| R27F-Y1.5KW | 4.27 | 1.5KW | 28.5kg | 1640N |
| R27F-Y1.5KW | 4.00 | 1.5KW | 28.5kg | 1620N |
| R27F-Y1.5KW | 3.37 | 1.5KW | 28.5kg | 1550N |
R27F減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y2.2KW | 10.13 | 2.2KW | 37.5kg | 1140N |
| R27F-Y2.2KW | 6.59 | 2.2KW | 37.5kg | 1150N |
| R27F-Y2.2KW | 5.60 | 2.2KW | 37.5kg | 1410N |
| R27F-Y2.2KW | 5.00 | 2.2KW | 37.5kg | 1550N |
| R27F-Y2.2KW | 4.27 | 2.2KW | 37.5kg | 1530N |
| R27F-Y2.2KW | 4.00 | 2.2KW | 37.5kg | 1510N |
| R27F-Y2.2KW | 3.37 | 2.2KW | 37.5kg | 1460N |
R27F減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R27F-Y3KW | 5.60 | 3KW | 40.5kg | 450N |
| R27F-Y3KW | 5.00 | 3KW | 40.5kg | 695N |
| R27F-Y3KW | 4.27 | 3KW | 40.5kg | 970N |
| R27F-Y3KW | 4.00 | 3KW | 40.5kg | 1070N |
| R27F-Y3KW | 3.37 | 3KW | 40.5kg | 1280N |
R28減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R18減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R28減速機 R27臥式硬齒面斜齒輪減速機 R27系列減速機 R27減速機傳動比 R27減速機選型參數 R27減速機CAD三維圖
